Description

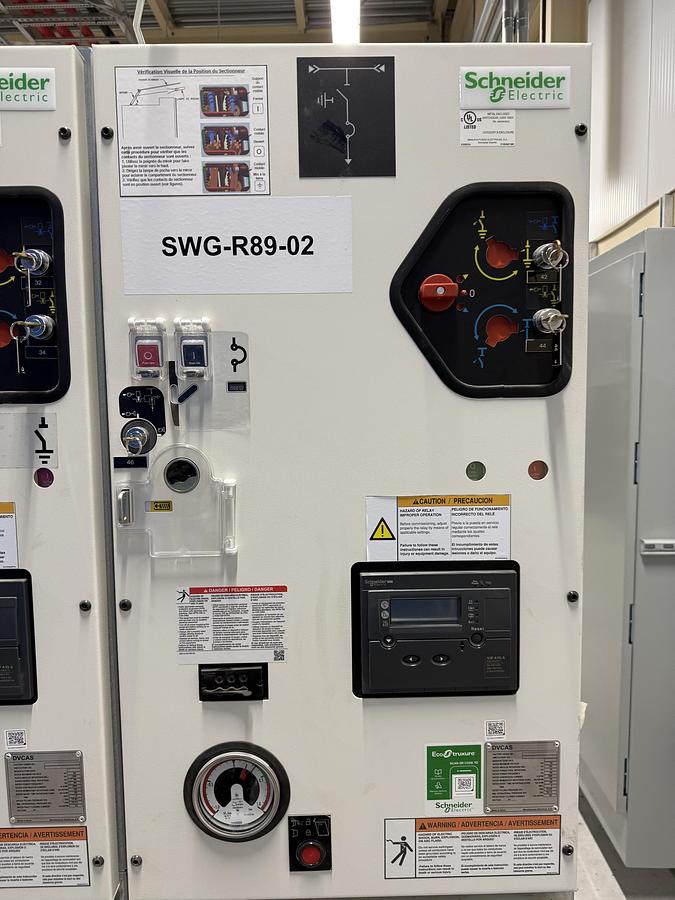

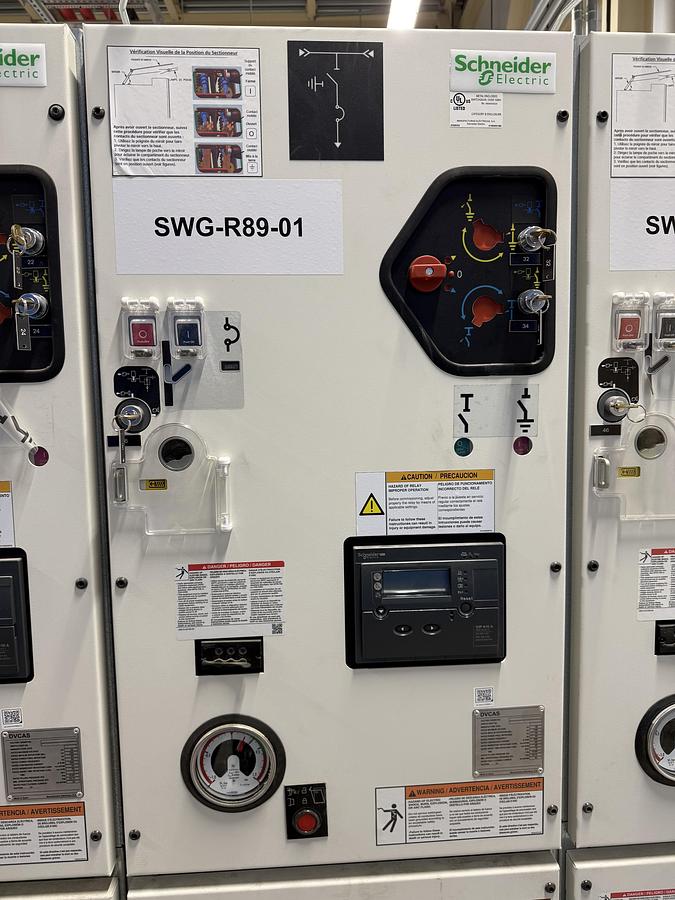

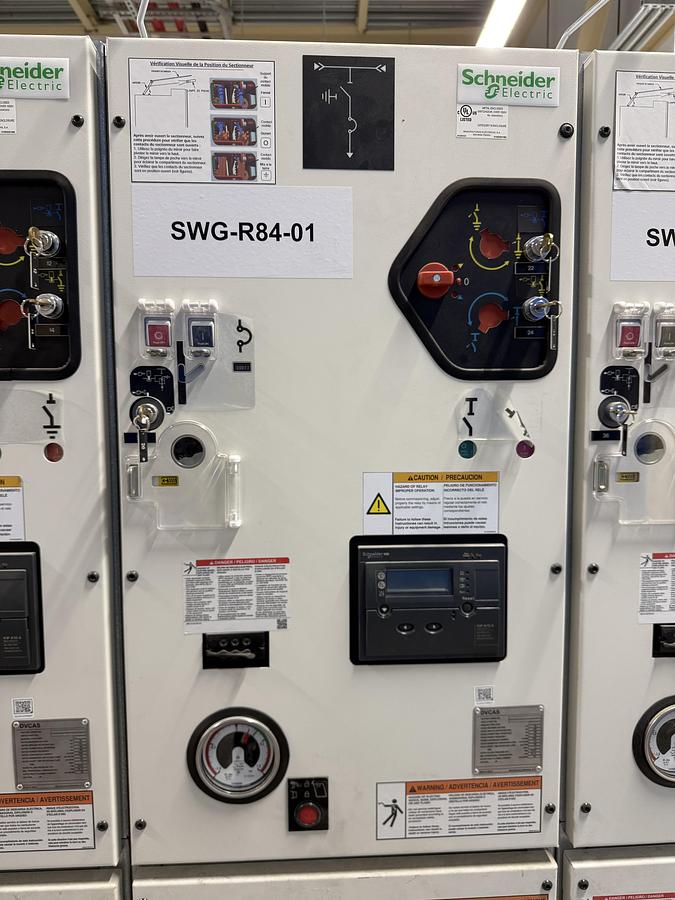

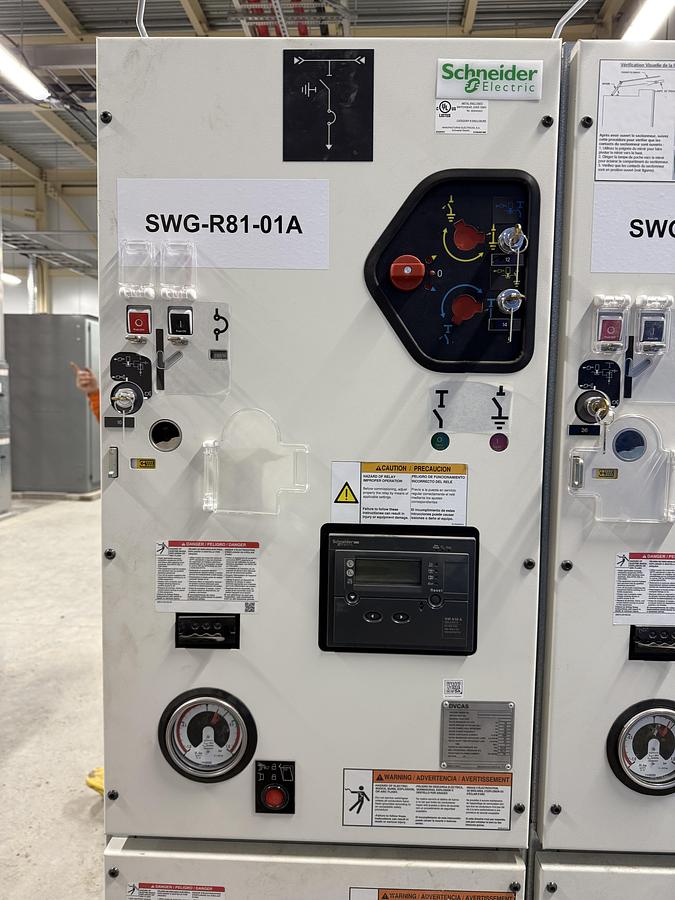

2024 DVCAS 38 kV SF6 Medium-Voltage Switchgear – 600A
Modern 38 kV medium-voltage SF6 insulated switchgear manufactured in Spain, designed for reliable utility and industrial power distribution applications. Rated 600A continuous with 150 kV BIL insulation level and high fault withstand capability up to 52 kA asymmetrical. Compact metal-enclosed design provides dependable switching, protection, and isolation performance for substations, renewable energy systems, industrial plants, and utility distribution networks. Built in 2024 and suitable for demanding 60 Hz North American electrical systems.
Click REQUEST QUOTE anywhere you see it on our site to receive a quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | Manufacturas Eléctricas |
| Model | DVCAS 38 DE-D Medium-voltage SF6 insulated switchgear / load interrupter switch |
| Year | 2024 |
| Condition | Surplus |
| Stock Number | 003719 |
Additional Features

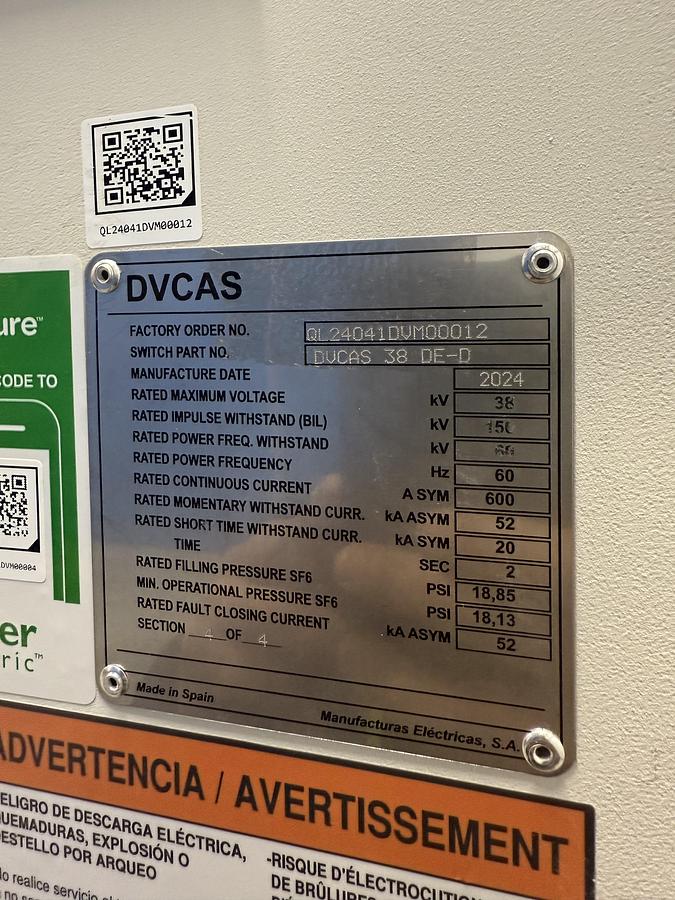

Manufacturer: Manufacturas Eléctricas, S.A. (Made in Spain)
Series / Model: DVCAS 38 DE-D
Manufacture Year: 2024
Type: Medium-voltage SF6 insulated switchgear / load interrupter switch
Factory Order No.: QL24041DVM00012
Main Electrical Specifications:
Rated Maximum Voltage 38 kV
Rated Power Frequency 60 Hz
Rated Continuous Current 600 A
Rated Impulse Withstand (BIL) 150 kV
Rated Power Frequency Withstand 80 kV
Rated Momentary Withstand Current 52 kA asymmetrical
Rated Short-Time Withstand Current 20 kA symmetrical
Short-Time Duration 2 seconds
Rated Fault Closing Current 52 kA asymmetrical
SF6 Filling Pressure 18.85 psi
Minimum Operational SF6 Pressure 18.13 psi
