2023 Raychem EHVT‑463‑SG – 46 kV outdoor shielded termination kit, heat‑shrink, for 250–750 kcmil cables
2023 Raychem EHVT‑463‑SG – 46 kV outdoor shielded termination kit, heat‑shrink, for 250–750 kcmil cables
Location:1d Canada East (Ontario)
Available quantity:12
Description
46 kV outdoor shielded single‑core power cable termination kit, part of TE Connectivity’s Raychem EHVT (High Voltage Termination) series
Rated for 46 kV systems

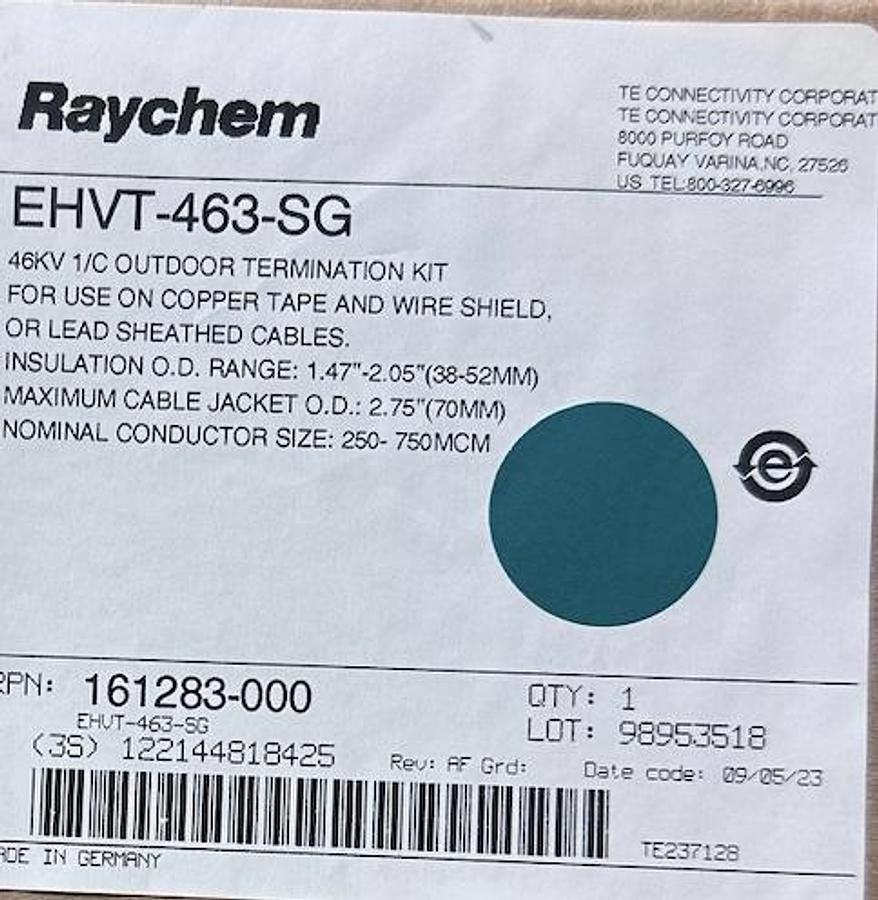

Designed for shielded cables with conductors from 250 to 750 kcmil, insulation diameter of 1.47–2.05 in (38–52 mm), max outer jacket ~2.75 in (70 mm)
Includes heat‑shrinkable insulating materials and skirts (“‑SG” suffix) to provide enhanced creepage distance and moisture sealing
Click REQUEST QUOTE anywhere you see it on our site to receive a quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | Raychem |
| Model | EHVT‑463‑SG – 46 kV outdoor shielded termination kit, heat‑shrink, for 250–750 kcmil cables |
| Year | 2023 |
| Condition | Surplus |
| Stock Number | 003665 |
Additional Features
Utilizes heat‑activated sealant, non‑tracking polymeric surface (ASTM D 2303 compliant), UV‑resistant, erosion‑resistant material ideal for polluted or harsh outdoor environments
Meets IEEE‑48 Class I termination standards and is tested per IEEE‑404 procedures
