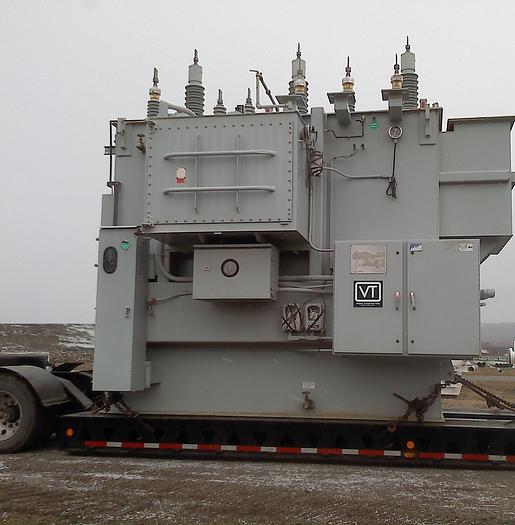

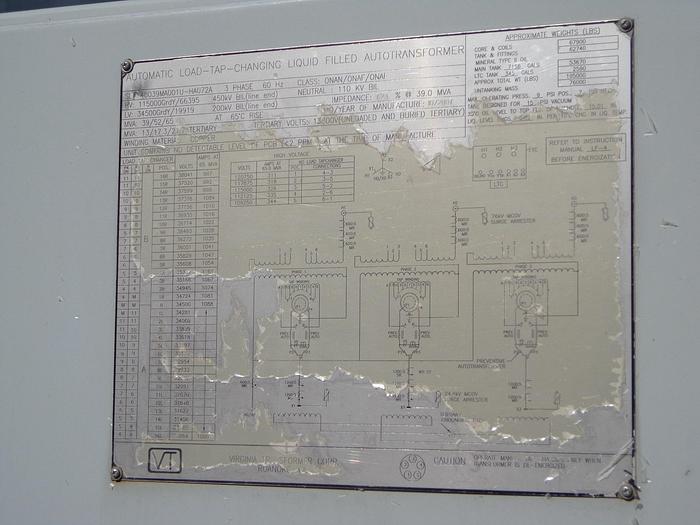

2007 VIRGINIA TRANSFORMER 39/52/65 MVA Transformer with Load Tap Changing
2007 VIRGINIA TRANSFORMER 39/52/65 MVA Transformer with Load Tap Changing
Contact Us for Pricing
Available quantity: 1
2c USA Northeast
Description
Virginia 39/52/65 MVA Transformer with Load Tap Changing
39 / 52 / 65 MVA
Primary: 115,000 GrdY/66,395 with standard straddle no load taps
Secondary: 34,500 Grd Y/19,920 @ 1,088 amps
Load Tap Changing - 33 steps ranging from 30,964 thru 38,041 Volts
Click REQUEST QUOTE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | VIRGINIA TRANSFORMER |
| Model | 39/52/65 MVA Transformer with Load Tap Changing |
| Year | 2007 |
| Condition | Surplus |
| Stock Number | 003505 |
| Transformer Mounting Style | Pad-Mount |
| Primary Voltage(s) | 115,000 GrdY/66,395 with standard straddle no load taps |
| Secondary Voltage(s) | 34,500 Grd Y/19,920 |
| Weight: | Main Tank Shipping Weight:125,200 lbs. Balance of Parts Weight: 25,000 lbs. |
Additional Features
3 Phase
60 Hertz
Class ONAN / ONAF / ONAF
Rise 55 / 65 C
Non-PCB Oil
Impedance: 7.23 % @ 39 MVA
Continuous Duty
Primary Bushings: TOP Cover Mounted
Secondary Bushings: TOP Cover Mounted
HV and LV Winding Material: COPPER / COPPER
Configuration: WYE / WYE
Manufactured NEW 2007
SURPLUS
High Voltage Taps
1. 120,750 volts
2. 117,875 volts
3. 115,000 volts
4. 112,125 volts
5. 109,250 volts
