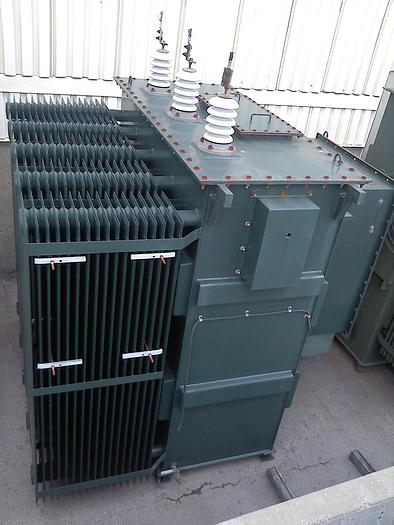

1998 Pioneer 4000/5333 kVA Substation Transformer 27,600 Delta - 600Y/347

1998 Pioneer 4000/5333 kVA Substation Transformer 27,600 Delta - 600Y/347

Contact Us for Pricing

Available quantity: 1

2c USA Northeast

orCall +1 (866)-694-1252

Description

1998 Pioneer 4000/5333 kVA Substation Transformer 27,600 Delta - 600Y/347

4000 / 5333 kVA @ 30 C Ambient

5000 / 6333 kVA @ 0 C Ambient

HV: 27,600 Delta with standard no load straddle taps - BIL 150 kV

LV: 600 Y/347 - BIL 30 kV


In stock for immediate sale and delivery!

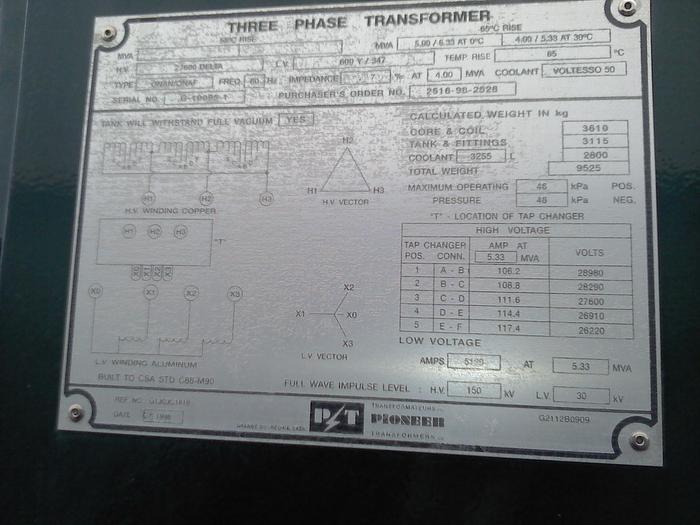

Also see attached nameplate & outline drawing pdfs


Click REQUEST QUOTE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!


* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.

Specifications

ManufacturerPioneer
Model4000/5333 kVA Substation Transformer 27,600 Delta - 600Y/347
Year1998
ConditionUsed
Stock Number003504
Transformer Mounting StylePad-Mount
Weight:9,525 kg (21,000 pounds)
Primary Voltage(s)27,600 Delta with standard no load straddle taps -
Secondary Voltage(s)600 Y/347
BIL Rating HV: BIL 150 kV, LV: BIL 30 kV
kVA Rating4000/5333 kVA

Additional Features

3 Phase
60 Hertz
Class ONAN / ONAF
Rise 65 C
Configuration: Delta / Wye
LV Amperes: 5,179 Amps @ 5.33 MVA
Primary Bushings: TOP
Secondary Bushings: FRONT
Standard Gauges & Valve Package Included
Coolant - Voltesso 50 (3255 L)
Manufactured 1998
Built to CSA STD C88-M90

High Voltage Taps
1. 28,980 volts
2. 28,290 volts
3. 27,600 volts
4. 26,910 volts
5. 26,220 volts
