2019 VIRGINIA TRANSFORMER Unused Surplus 20/33 MVA VTC Substation Transformer
2019 VIRGINIA TRANSFORMER Unused Surplus 20/33 MVA VTC Substation Transformer
Location:2c USA Northeast
Available quantity:1
Description
In stock, available for immediate delivery!

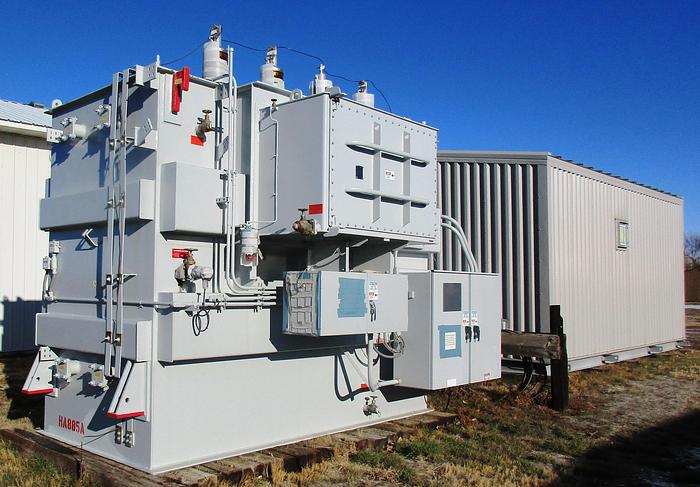

This is an UNUSED SURPLUS 20/33 MVA VTC Substation Transformer manufactured
2019! Ready-to-ship, never energized.
Oil included. bushings crated. One day delivery.
If purchased new, the transformer only would go for $1.4M - $1.6M.
Comes with complete substation. switch+ frame, Breaker+ frame, lightning arrestors, ehouse purchased separately.
Transformer has load-tap changing.
Also have about 10MVA power that would bring this from 6900 to 480Y if needed purchased separately
MVA: 20/26.66/33.33
HV:115000V
LV: 6900GrdY /3984 V
550 kV BIL
110 kV BIL
Click REQUEST QUOTE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | VIRGINIA TRANSFORMER |
| Model | Unused Surplus 20/33 MVA VTC Substation Transformer |
| Year | 2019 |
| Condition | Surplus |
| Serial Number | 48020MA044U-HA885A |
| Stock Number | 003501 |
| Transformer Mounting Style | Pad-Mount |
| Primary Voltage(s) | 115,000 V Delta |
| Secondary Voltage(s) | 6,900 GrdY / 3984 V |
| BIL Rating | Primary: 550 kV BIL, Secondary:110 kV BIL |
| kVA Rating | 20,000/26660/33330 |
Additional Features

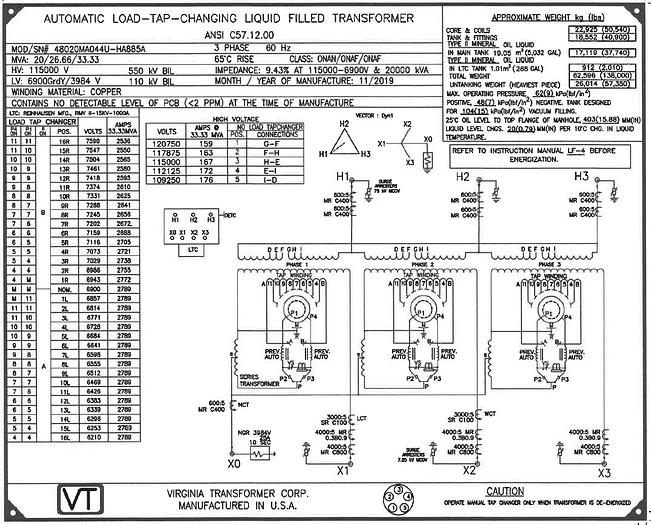

Liquid Filled Transformer Data:
MOD/SN: 48020MA044U / HA885A
MVA: 20/26.67/33 33 AT 65°C RISE
3 PHASE, 60 Hz,
IMP: 9.50% NOM. +/-7.50%
WINDINGS: COPPER
CLASS: ONAN/ONAF/ONAF
WT: 138.0001 BS
HV DE-ENERGIZED TAPS: +/-2 X2.5 %
LV LOAD TAPS : +/ 16 X 0.625%
HV: 115,000 V DELTA. 550 kV BIL. 167 A NOM @ 33.3 MVA
LV: 6900 Grd Y / 3984 V. 110 kV BIL. 2789 A NOM @ 33.3 MVA
