2013 ABB 750 kVA, 27600 Delta 460 Y/265 Transformer
2013 ABB 750 kVA, 27600 Delta 460 Y/265 Transformer
Discounts available on volume purchase
Available quantity: 10
2c USA Northeast
Description

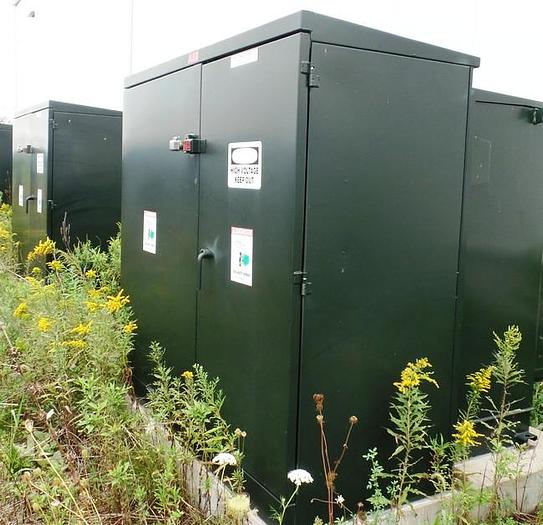

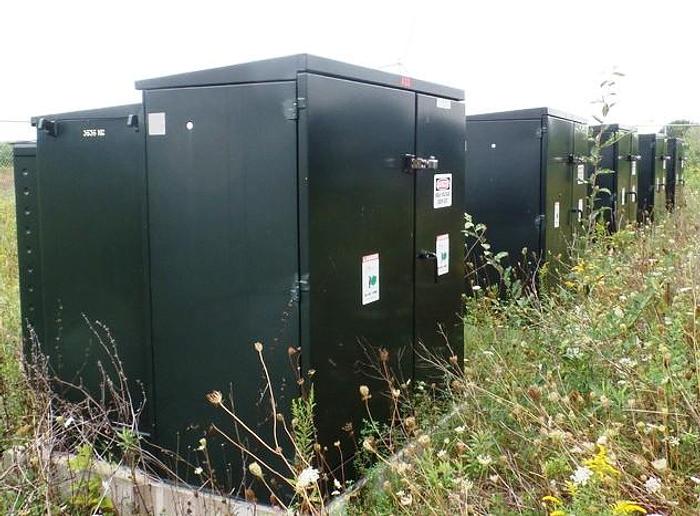

750 kVA ABB Padmount Transformers. Perfect for bit-coin mining applications.
Available for immediate shipping and delivery.

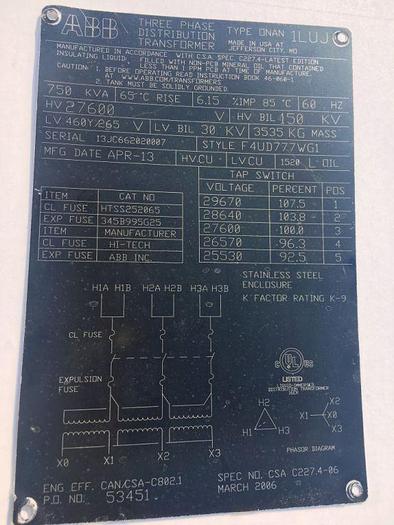

See Attached nameplate and outline drawings, and photos.
HV: 27,600 Delta with standard no load straddle taps - BIL 150 Kv
LV: 460 Y/265 - BIL 30 Kv
3 Phase
60 Hertz
Class ONAN
Rise 65 C
Configuration: Delta / Wye
Standard Gauges & Valve Package Included
Excellent Condition
Manufactured APRIL 2013
High Voltage Taps
1. 29,670 volts
2. 28,640 volts
3. 27,600 volts
4. 26,570 volts
5. 25,530 volts
Weight: 3,535 kg ( 7,777 lbs.) each
Click REQUEST QUOTE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | ABB |
| Model | 750 kVA, 27600 Delta 460 Y/265 Transformer |
| Year | 2013 |
| Condition | Used |
| Stock Number | 003492 |
| Transformer Mounting Style | Pad-Mount |
| kVA Rating | 750 |
| Primary Voltage(s) | 27600 Delta |
| Secondary Voltage(s) | 460 Y/265 |
| BIL Rating | HV: BIL 150 Kv, LV: BIL 30 Kv |
Additional Features
- Electrically and physically identical, with the same impedances for paralleling,
- Manufactured NEW 2013,
- all have copper HV and LV windings,
- K-9 Factor rated,
- stainless steel enclosure,
- UL, CUL, CSA listed and approved,
- dead front loop feed,
- LBOR switch,
- dual primary fusing (expulsion and current limiting)
- ABB 1000 amp molded case circuit breaker included, with electronic trip functions installed on the secondary!
- Copper HV / Copper LV Windings
- Current Limiting Fuses
- Expulsion Fuses
- Dead Front Loop Feed Primary
- Spade Connected Secondary
- Superior Kirk Key Interlock Mounted on Doors
-
