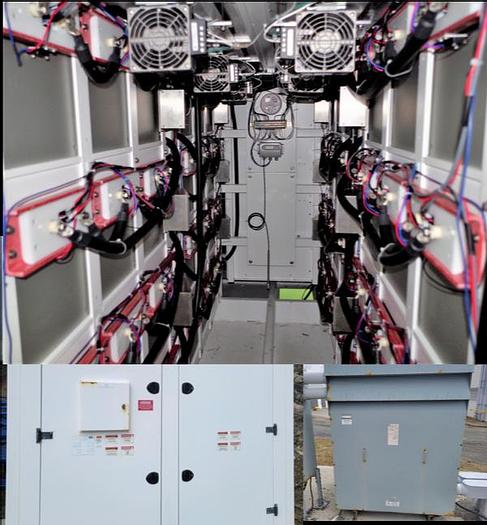

2015 500 kW Microgrid Equipment - ABB PCS 500 Smart Inverter - eCamion BESS PCS System - 500 kVA Transformer

2015 500 kW Microgrid Equipment - ABB PCS 500 Smart Inverter - eCamion BESS PCS System - 500 kVA Transformer

Price Negotiable. Sold as pkg (BESS, Inverter & xfmr)

Available quantity: 1

1d Canada East (Ontario)

orCall +1 (866)-694-1252

Description

MAKE AN OFFER! This Microgrid equipment package includes a 500 kW Inverter, battery energy storage system and a 500 kVA transformer. It's capable of providing temporary backup power to customer loads. It can seamlessly transition the customer’s loads from grid-connected state to an islanded state and back again. Use it to shave peak demand, maintain power quality, provide voltage stability, and mitigate harmonic distortion and voltage flicker. Useful for industrial, utility, as well as commercial facilities with 600V 3-Phase loads.

This system was used in a feasibility study consisting of:

  1. Integrating with 125kW solar generation, and providing power to essential loads of the building during the power outages.
  2. Charging the batteries in the night (during minimum load ) and using the charged batteries to supply peak load to operate as a “Peak Shaving” function to reduce extra electricity use charges and save on monthly bills.
  3. Using the anti-islanding option, with smooth transition to islanding and grid in case of the need.
  4. Using it to control the power quality and balancing of the load.
  5. Testing for step-wise load shedding of the building during any outage so as to supply power to the essential load until the power from the grid restored back.
  6. Testing for its full operating cycle of the SOC on batteries for their upper and lower limits so as to utilize the charge on the batteries for load and simultaneously keeping the batteries from draining to zero charge.


Want to learn more of Microgrid uses and value, check out this link..

MICROGRID Knowledge


Maintenance log & certification documents available on request


Click REQUEST QUOTE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!


* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.

Specifications

Manufacturer500 kW Microgrid Equipment
Model- ABB PCS 500 Smart Inverter - eCamion BESS PCS System - 500 kVA Transformer
Year2015
ConditionUsed
Stock Number003458
Transformer Mounting StylePad-Mount
kVA Rating500kVA

Additional Features

Removal and transportation is to be performed by the buyer

Continuous Real Power: 500kW
Rated Energy Capacity: 250kWh

ABB EssPro PCS Smart Inverter includes:
* Nominal system AC: 500 kVA. 274V/3PH/60HZ 1054A
* Nominal system DC: 500 kW 432-610VDC. 1157-1000ADC
* AUXILIARY SUPPLY: 15 kVA. 600V/1P/60H2. 31A
* UPS / STATION SUPPLY: 850VA. 120V/1P/60H2. 7A
* ENCLOSURE TYPE: FRAME 1-TYPE 3R
* WEIGHT: 7000 kg
* Shipping Dimensions: 118 1/4 L x 60 1/2" W (with brackets) x 119 3/4"H
Note: 9 1/2" can be saved if the brackets are taken off
* DATE OF MANUFACTURE: 2015-12
* ABB SERIAL NO: 3AUP010A124-01

eCamion Model VG500 BESS PCS System Includes:
* Product Number: 268-e0480A-600V
* AC Voltage Input: 120 Vac
* AC Rated Current: 30 A
* Single Phase
* DC Bus Voltage: 533 V (Nominal)
* Rated DC Current: 400 A (DC) per String
* Shipping Dimensions: 138 1/4" (with brackets) x 93 1/4" W x 66 1/2" H
Note: 12" can be less in the length if the brackets are taken off
* Weight: ~7000 kg
See attached PDF for complete technical specs.

Hammond 500 kVA 600V Primary Transformer includes:
* HV/HT: 600Y/346V
* LV: 274V
* SN: AA00633473
* PN: 220475
* 3 Phase
* Shipping Dimensions: 51 1/4" L x 43" W x 66 1/2"H
* Weight: 1315.42kg
