STI 3503B Substation, 5000 KVA 35kv/600v transformer, 6000A output

STI 3503B Substation, 5000 KVA 35kv/600v transformer, 6000A output

Available quantity: 1

2a USA West

orCall +1 (866)-694-1252

Description

STI 3503B Substation, 5000 KVA 35kv/600v transformer, 6000A output

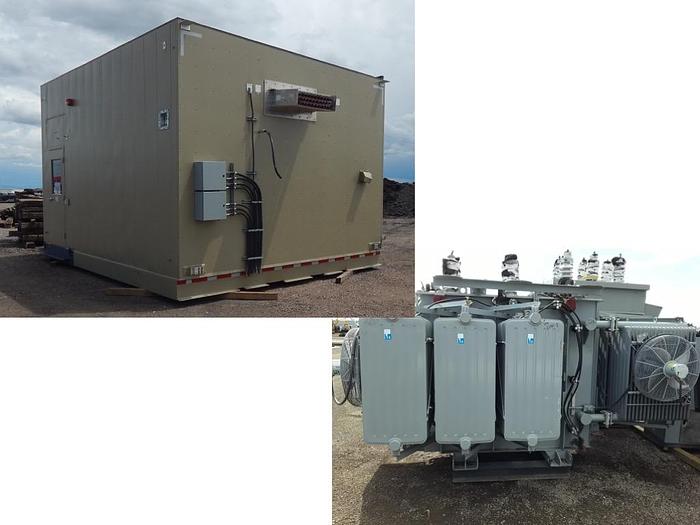

Surround Technologies Inc 3503B skid mounted E-house (Drilling Skid):

Connection Box for 600V, 6000A Input from transformer

600V, 6000A 3/p, 4/w, 60kAIC Switchgear

75kva 600-120/208v Transformer

120/208V, 3/p,4W, 10kAIC Switchgear


Siemens Equipment

Power control and monitoring equipment

Climate control equipment (HVAC)

Battery Back-up System

Generator Connection




Siemens 5MVA Transformer / Switchgear Assembly:

3.75MVA ONAN/5.0MVA ONAF Transformer - 34.5kv - 600/347v

In-tank CT's and Tap changers

Top-mounted 35kv Bushings and Surge Arrestors

Integrated Siemens 38kv, 1200A Main Breaker

6000A, 600V 3/p, 4/w secondary output bars



Specifications

ManufacturerSTI
Model3503B Substation, 5000 KVA 35kv/600v transformer, 6000A output
ConditionNew
Serial Number782451063284
Stock Number003371

Additional Features

Never Installed

Voltage Rating (AC): 3.5 KV;
Current Rating: 6000
Circuit Breaker Type: Vacuum Circuit Breaker;
Country/Region of Manufacture: United States
MPN: WLH3A350
Number of Poles: 3
Brand: Siemens
UPC: 782451063284

2014 Siemens cKOUM 108 34.5KV transformer
Type: cKOUM 108 7-14 s/34.5
Manufactured to: CSA-C88-M90

See plates for detail specs
