Description

Offers accepted Until September 17th, 2021 @ 3pm EST on entire lot 1 of 15KV air magnetic Circuit Breakers!


The following LOT 1 devices are available immediately:

  • ITE 15KV class, Model: 15-HK, air magnetic circuit breaker, rated 1200 Amps, 13.8KV, 750MVA interrupting. QTY: 4
  • ITE 15KV class, Model: 15-HK, air magnetic circuit breaker, rated 2000 Amps, 13.8KV, 750MVA interrupting. QTY: 1

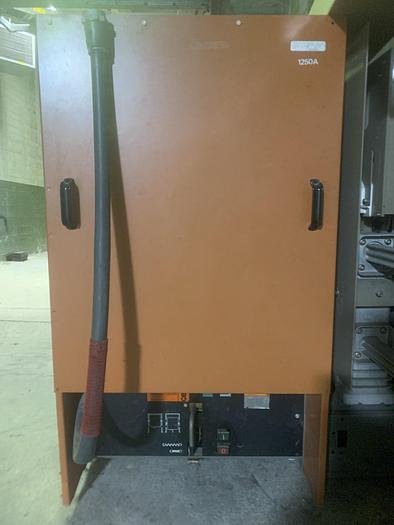

  • Square D 15KV class, Model DSE-68, Merlin Gerin air magnetic circuit breaker, 1250 Amps continuous, 42kA interrupting. QTY: 4


For future reference...The following LOT 2 devices will be available Sept 2023... Stay tuned!

  • ITE air magnetic circuit breaker, 15KV class, Model 15HK, rated 1200 Amps, 13.8KV, 750MVA interrupting. QTY: 6
  • Square D Merlin Gerin air magnetic circuit breaker, 15KV class, Model DSE-68, 2500 Amps continuous, 42kA interrupting. QTY: 4
  • ITE/ABB Ground & test truck, rated 1200 Amp, Model 15HK. QTY: 1
  • Eaton 600V Magnum DS Low Voltage AC Power Air Circuit Breaker, 4000 Amp frame, 65 kA interrupting, 3 pole 50/60 Hz w/ Digitrip 1150 trip unit. Qty: 3
  • Eaton 600V Magnum DS Low Voltage AC Air Power Circuit Breaker, 800 Amp frame, 65 kA interrupting, 3 pole 50/60 Hz w/ Digitrip 1150 trip unit. Qty: 23
  • Bus assembly for above 600V switchgear, 4000 Amp bus, 65 kA rated. 2005 construction. QTY: 1
  • Rex Grounding transformer Model: 12000Z/6928V, 60 HzH0-H1-H2-H3, BIL 95KV, 150 KVA, ANN, 3 ph Auto, 150 0C rise. QTY: 1


Specifications

ManufacturerITE & Square D
ModelAir magnetic circuit breakers - 15KV Class
ConditionUsed
Stock Number003416

Additional Features

This Ontario Power company is reconfiguring and modernizing its transformer station. The upgrade will result in the availability of a significant number of 600V power circuit breakers and 15KV air magnetic breakers listed in pictures. “LOT 1” devices are available immediately, with “LOT 2” becoming available in September 2023.
These devices are in good working condition and have been maintained to industrial standards.
While we believe them to be in good condition, interested parties are asked to provide offers for the devices listed on an “as is, where is” basis. We make no representation as to the condition of the devices.
